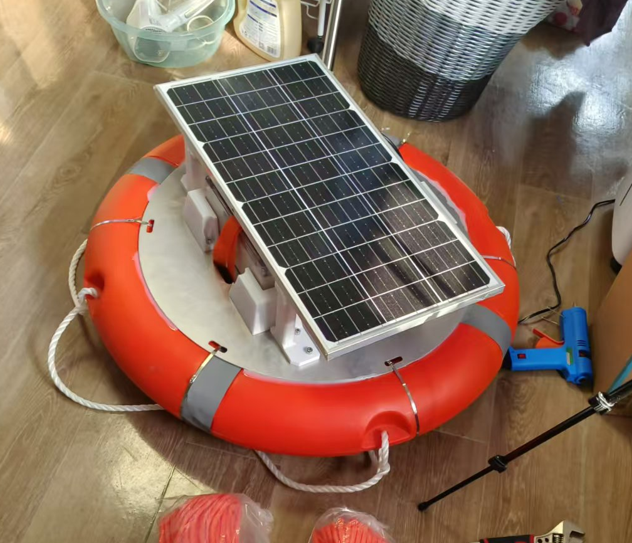

Solar panel
The panel sits above the enclosure on four printed supports.
Back to blogs VISUAL STUDY / 003
WATER QUALITY MONITORING FLOAT
Inside the float.
Separate the assembly. Select a component.
Explore how the pieces fit together.
Loading assembly…
DRAG TO ORBIT · SCROLL TO ZOOM · MIDDLE-DRAG TO PANCAD UNITS / mm
00 / COMPLETE ASSEMBLY
A platform for lake monitoring.
The flotation ring carries an aluminum platform, an electronics enclosure, and a solar panel. Select a part in the model or component list to inspect its role.
- MATERIAL
- Mixed assembly
- IN THE MODEL
- 20 component instances
ANATOMY / WATER QUALITY FLOATOne system.
One system.
Many moving parts.
Scroll to separate the assembly.
Loading assembly…
Enclosure & lid
A pale plastic shell and clear acrylic lid surround the electronics.
Electronics & sensors
The circuit board connects the monitoring system to three probes below.
Platforms & supports
Aluminum plates carry the equipment. Printed mounts locate the enclosure, panel and probes.
Flotation & sensor guard
The ring supports the float while the open mesh guard lets water reach the probes.
SCROLL TO DISSECT ASSEMBLY / V3.5 CAD
FROM MODEL TO HARDWARE

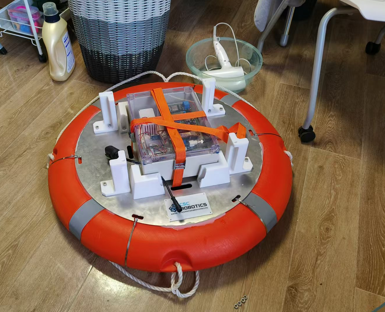

The built float.
Colors and finishes follow these reference photographs. The CAD model defines the geometry; the hollow enclosure, acrylic lid, electronics board, mesh guard, printed sensor stand and probes are illustrative reconstructions. Wiring, straps and reflective tape are not modeled.
